COMPACT
LIGHTWEIGHT
INTELLIGENT

HUN40 mobile crane

The crane we produce is our Hungarian designer team’s intellectual property. The manufacture of the parts, subassemblies and the assembling are performed in Hungary.The official manufacturer of the mobile cranes is Magyar Daru Kft., distribution and service is provided by DEET Kft.

Main technical advantages

  • The only 40 ton, 3-axle mobile crane type currently available on the market that does not require load based road permission.
  • Optimized axle-loads: Without counterweight there is no need for road permission, with 2 tonnes of counterweight no overload fee is required. The vehicle is capable of travelling with its full set of counterweight, which is a total of 7,7 t.The counterweight set consists of multiple separate volumes. It can be selected in steps in order to minimize the overload fees.
  • Fully extended telescopic boom length: 33 m.
  • With an additional 12,3 m folding jib, the maximum lifting height is 46 m, the maximum lifting radius is 43 m.
  • The retracted boom length is 8,7m, the shortest of its category. The booms outreach from driver’s cab is minimal, providing good manoeuvrability even on narrow streets.
  • Adaptive, slew angle dependent lifting capacity: significantly higher loads allowed in the direction of the legs, independent outrigger extensions possible.
  • Single-engine design in order to minimize weight, and reduce the risk of failures.
  • Off-road capability thanks to the 6x6 drive, which also makes it stand out amongst its competitors. Self-rescue crawler option for the toughest terrain.
  • Unique outrigger design: the reversed leg cylinders are folding in the outrigger beams. This, in addition to its compact design,also guarantees maximum protection for the hydraulic cylinders.
  • The crane structure is located completely above the upper plane of the vehicle chassis, with no element extending below this plane.This makes it easy to fit into any chassis type, without restricting the axle positions, while maximizing the terrain-angle. The customer can select the make, the drive formula, and also the extras of the chassis needed.

The crane superstructure is mounted on the chassis supplied by the customer, or the manufacturer, as needed. The mobile crane will be delivered as a full vehicle, with all the necessary examinations, and paperwork settled. In addition to configurable equipment, we are willing to fulfil unique customer requirements.

Click here for detailed specification - HUN40_CATALOGUE_EN.PDF (4,7Mb)

Dimensions

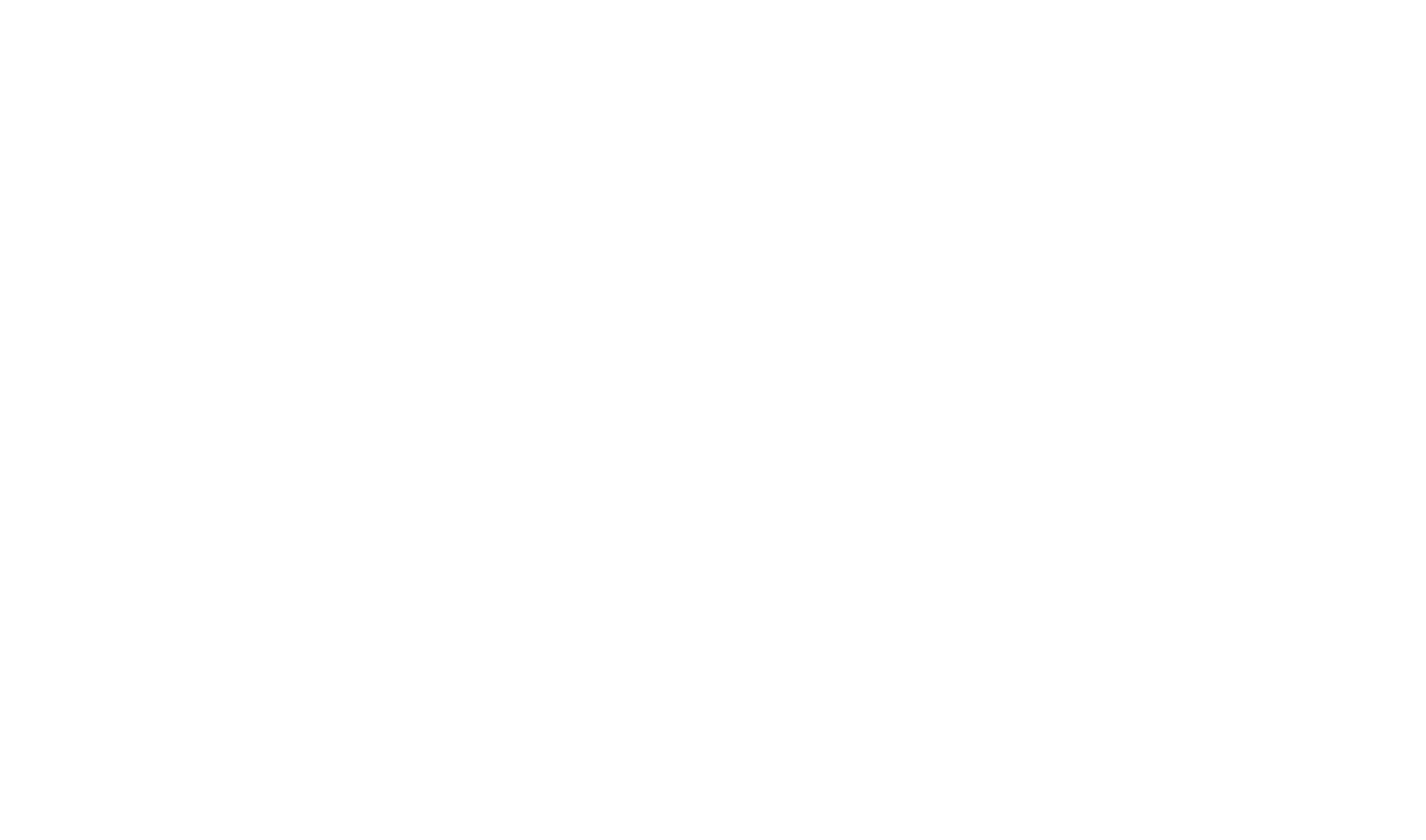

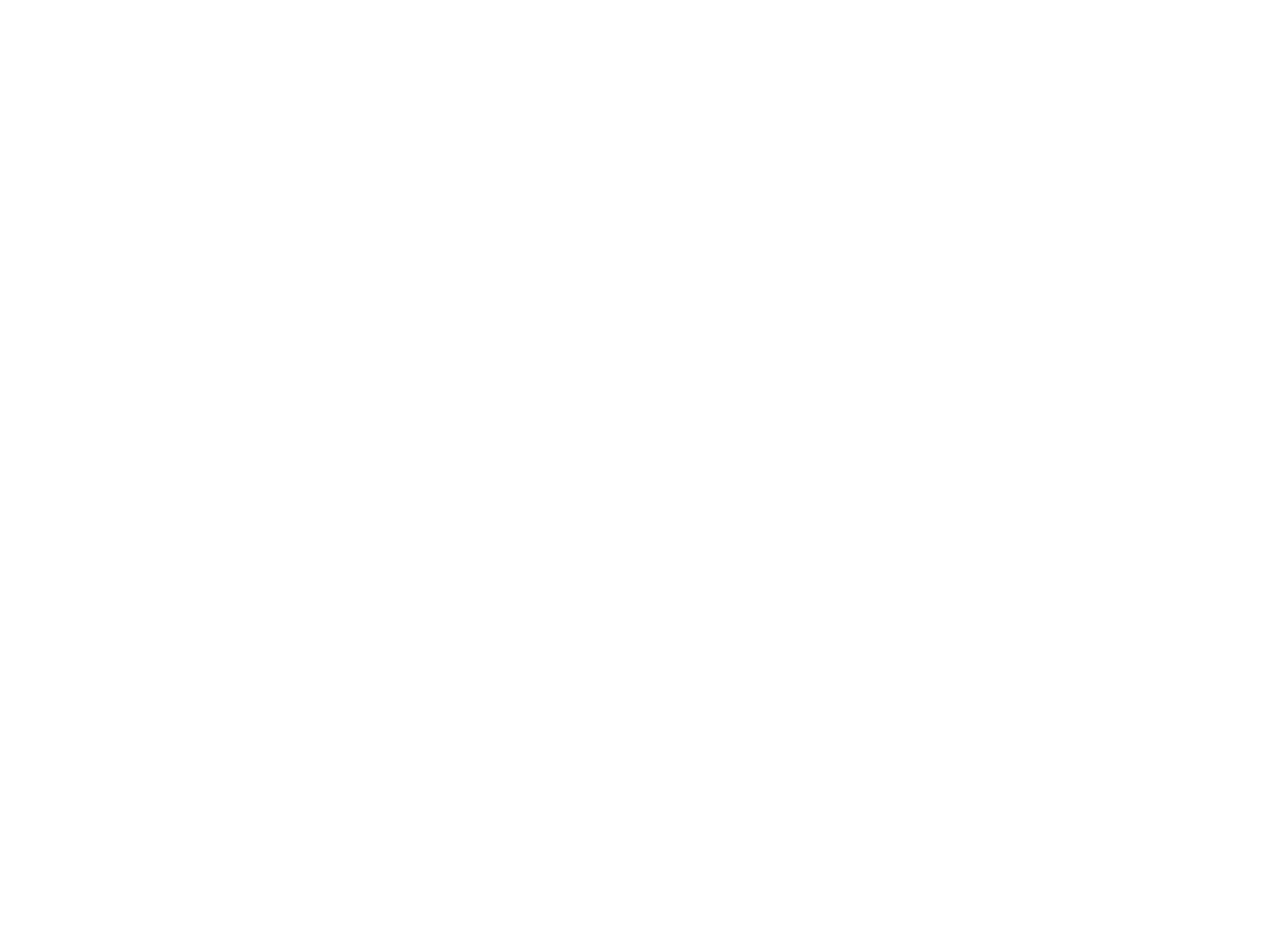

Dimensions shown on a Scania 6x6 chassis from side and top view.

HUN40 mobile crane dimensions shown from side and top view. Swipe left or right to change view.

   Scania P 410 B6x4HZ CP17L chassis, single 385/65R22.5 size tires on the front, 315/80R22.5 size double tires on the rear axles /
* Scania P 410 B6x6HZ CP17L chassis, single 365/85R20 size tires on all axles

Adaptive load capacity

The lifting capacity is calculated by the smart crane control based on the working radius and slew angle, and according to the actual counterweight, outrigger extension and fly jib configuration. The outrigger beams can be extended independently, which allows the operator to work in confined spaces. Significantly higher loads are allowed in the direction of the legs, especially in asymmetrical outrigger positions.

Load capacity in different slew angles (t)

Click here to show/hide the parameters used for this example.

On the shown example the following parameters were used

  • Parts of hoisting line
  • 2
  • Boom length status
  • 75 % - 75 % - 75 % - 75 %
  • Boom length
  • 27,11 m
  • Lifting radius
  • 16 m
  • Boom angle
  • 49,9°
  • Counterweight
  • 2,6 t

On the shown example the following parameters were used

  • Parts of hoisting line
  • 2
  • Boom length status
  • 75 % - 75 % - 75 % - 75 %
  • Boom length
  • 27,11 m
  • Lifting radius
  • 16 m
  • Boom angle
  • 49,9°
  • Counterweight
  • 2,6 t

About us

Our company is the legal successor of the 1982 established, mobile crane servicing Deet Kft.’s prototyping department. Along with the many years of experience in operation, and maintenance, we have started to design and manufacture a crane that stands out amongst its competitors with its technical parameters, flexibility, while its structure is lifelong, the maintenance is simple. The mobile cranes are manufactured in our dedicated production facilities in Üllő, Hungary. Our company is EN 1090 certified and undergoes continuous quality control as stated in the standard.

Our partners

The commodities, consumables, and parts for our cranes have been supplied through our qualified suppliers, thus ensuring the quality, reliability and durability of the end product.
